Explosion Proof Electrical

BAT52- Series Explosion-proof Floodlights

  • Product ID:Explosion Proof Electrical
  • Whatsapp & Wechat:+8613868719385
  • Phone: +8613868719385
  • Tel: +86 577 27880251
  • E-mail: info@dlxex.com
  • FEEDBACK

Explosion protection
-China Ex(GB)

Application in hazardous area
-Zone 1 and Zone 2

-Zone 21 and Zone 22

Lightsource and power(Max.400W):
-Metal halide lamp(HIE)

-High pressure sodium lamp(HSE)

The light source and ballast are integrated,open side cover to replacebulband maintenance,which is convenient for installation and maintenance.
Without light bulb as default,Philips bulb is recommended.
Irradiation angleof bracket type is adjustable.
Protectivegrid can be equippedupon request

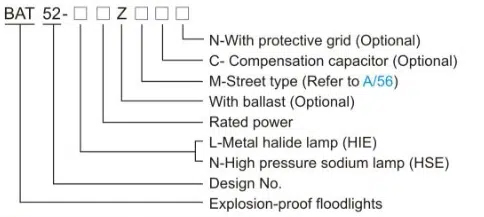

Nomenclature

Luminous distribution curve

Accessories list

  Installation method ltem Picture   Purchase code Weight (kg)
  BAT52-口□Z Mounting bracket  2.14.0708151  0.93
  BAT52-□□ZM Street lamp outlet
sleeve (with screws)
  4.02.412.0018  0.66
Note: The accessories that are  not  mentioned  in the table,shall  provided  by  user.

Technical Specifications

Ex marking Gas Ex d IIB T4/T3 Gb,Ex d e IIB T4/T3 Gb
Ex d IIC T4/T3 Gb,Ex d e IIC T4/T3 Gb
Dust Ex tD A21 IP66T130/195℃
Conformity to standards GB3836.1,GB3836.2,GB3836.3,GB12476.1,GB12476.5
Structure
Material
Enclosure Aluminum alloy enclosure,powder coated,industrial grey with dark lines texture(RAL7035)
Transparent cover Tempered glass,resistant to 4J impact
Protective grid Steel wire powder coating (white)or stainless steel,please note when needed.
Ballast Built-in inductive ballast
Trigger Universal trigger
Compensation
capacitor
Power factor ≥0.9
Reflector Orange skin texture diffuse reflector,soft light,large irradiation angle
Exposed fastener Stainless steel
Light
source
Lamp holder     E27  E40
Power(W) Temperature class Power(W) Temperature class
HIE 70,100,150 T4 175,250,400 T3
HSE 70.100,110 150,250,400
Rated voltage 220-240V AC,50Hz(60Hz optional)
Degree of protection IP66
Ambient temperature -20℃~+40℃
Terminal block 3X1.5~4mm²(L+N+PE)
Cable entries 1-G3/4
Available cable outer diameter (mm) φ10~φ14(mm)
